Accelerate your IIoT Applications with FrameworX™

Securely enable the Industrial Internet of Things - IIoT

The FrameworX platform is currently used in many IIoT applications. Our Edge and IIoT-Gateway were created from ground-up with secure technologies. Our open and layered platform includes full MQTT with SparkplugB support. We also include a full range of PLC and device connectivity. You can run with or without HMI, and our powerful platform enables real-time analytics and data acquisition at the edge.

Our Benefits

Complete

Everything you need in one install, built-in drivers, SQL, redundancy, MQTT Broker / MQTT Client, Real-time C#, Python.

Create Fast and Powerful

Reusable symbols and components, projects stored in one secure file, built-in versioning.

Security & Redundancy

Mission-critical Edge and Gateway, Security at the core level.

Affordable

Our IIoT Edge and Gateway version is sized to your application, includes drivers, MQTT, audit trail and more.

Modular Architecture

Flexible architecture and configurations to optimize your IT standards, or existing landscape.

Integrate to Any Cloud

Microsoft Azure, AWS or any cloud platform, we are Open and Secure.

Connected Data Hub

Edge computing, store/forward to SQL, Data Historian or IIoT Cloud.

You Choose Hardware

Edge and Gateway runs on any flavor of Windows as well as Linux, embedded and Raspberry Pi.

Scripts to Enable Analytics

Powerful script engine at the edge or in the Cloud, C#, VB.NET, Python.

It’s not uncommon to hear, “This is like magic,” during Tatsoft training sessions when customers are upgrading from legacy solutions. Tasks such as design or troubleshooting can be completed in just one-tenth of the time with Tatsoft compared to traditional legacy systems.

- Control System Technologies

One of the main reasons we decided to work with Tatsoft is they have decades of experience in developing software products and understand the need to have a flexible, reliable platform on which to build applications that will last a long time.

- Renifer Systems

I can’t tell you how many people have come through this building. International groups are very interested. We like showing it off. The system is a big change from what we had; everybody appreciates it.

- Cargill Feed Safety Research Center

The other packages we looked at were either extremely long in the tooth, could only communicate with a single PLC, or were lacking in data collection capabilities (…) FrameworX also provides the tools for us to make complex animations that were essential for us to separate ourselves from the competition.

- Rite Irrigation LLC

Other key factors leading to our decision to use FrameworX were the wide range of options for displaying graphics, built-in .NET scripting for special requirements, communication flexibility, and competitive pricing.

- Water and Wastewater Industries

Safe, Fast, Real-time Analytics at the IIoT Edge

Real-time, event-driven, in-memory database that manages tags, assets, and events. Run scripts, C#, VB.NET, Python, based on data change or other events. Collect data, store and forward to any external data store in a secure manner.

SCADA Software
SCADA Software

MQTT (Server) Broker and MQTT Client and Sparkplug B Included

Full MQTT Support included! Flexible configuration using MQTT optimized for your architecture. Our MQTT Broker connects with MQTT Clients following the Sparkplug B specification or pure MQTT Clients such as the Mosquitto clients. HiveMQ Broker support for larger applications.

Tatsoft FrameworX IIoT Configuration

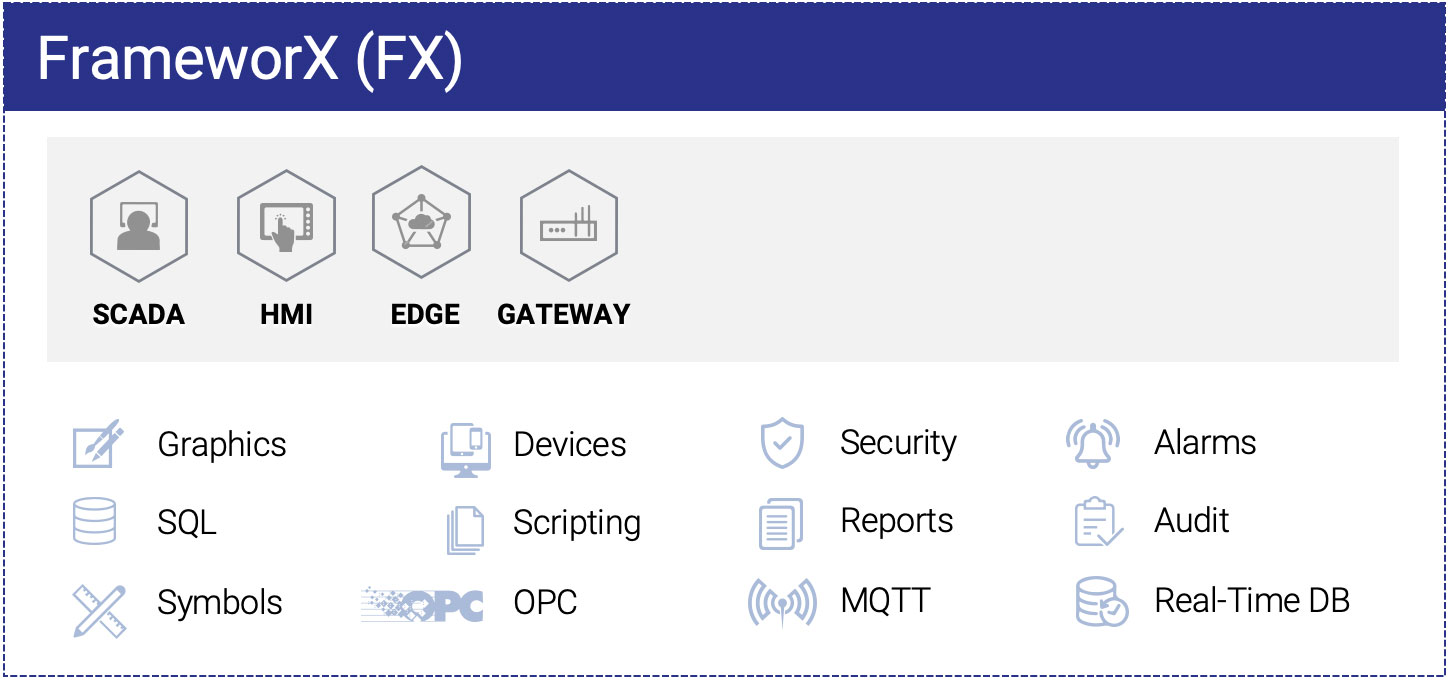

Tatsoft FrameworX Includes:

  • MQTT Broker (Server)
  • MQTT Client
  • MQTT Client + Sparkplug B

*No additional software needed

SCADA Software

*All Projects include TServer (with SparkPlugB)

FrameworX FactoryStudio SCADA Software

Open, Scalable and Secure IIoT: Edge, On-Premise, Cloud

A complete set of tools for creating IIoT applications and much more.
– Affordable Edge and Gateway versions
– Fully functional SCADA includes alarms, alerts, and scripting
– Connect to any device, database, or Cloud
– Use any or all of the integrated development tools

SCADA Software

Open and Layered Software Framework for IIoT, HMI and More

A complete software platform that includes all of the components you need and a modular architecture built to fit your IIoT projects.  Use what you need, deploy where you need to, connect to anything.

IIoT Platform

Our new IIoT software platform includes all of the components you need, including full connectivity to our on-premise version of FrameworX Unlimited and FactoryStudio.

  • IoT Rules Engine
  • Security
  • MQTT and HTTPs
  • Pure Web Dashboards
  • Servers-side APIs
  • Alarm Management
SCADA Software

FrameworX for IIoT

Alarm and Notification

Multi-threaded alarming, log to SQL, scripts subscribe to events.

Built-In Drivers

Major PLC, OPC UA, MQTT drivers included. Driver Toolkit available.

MQTT Broker (Server) Included

FrameworX includes an MQTT Broker and MQTT Client with Sparkplug B.

Built-In SQL

Embedded SQL engine included or integrate to any SQL.

Intrinsically Secure

Implemented at the core of the platform, stable and secure.

Data Logging

Log data at the edge for edge analytics or store and forward.

Integrate to any Historian

Seamlessly integrate to any process historian including OSISoft PI, Canary Labs, GE, Wonderware and more.

Audit Trail Anything

Log events, you choose events securely to logged to encrypted SQL.

Smart Symbols

Tag, asset, template based, reusable components.

Robust and Fast

.NET to the core means fast and powerful processing at the edge or secure gateway.

Scripting

Code behind and expressions using VB.NET, C#, HTML5/ Javascript and Python.

Dashboard Builder

Build responsive dashboards create or import your own symbols and components.

Alarm and Notification

Multi-threaded alarming, log to SQL, scripts subscribe to events.

Scalable Edge Pricing

Buy what you need we scale both functionally and commercially.

Redundancy

Server, device communications easily configured for redundancy.

FAQ

What does Tatsoft have for IIoT?

The FrameworX Platform is Open and Universal and design to fit in to many IIoT architectures. We include MQTT Broker and Client functionality and SparkplugB in all our products, some of this functionality is new for 9.1. We have our Edge Gateway products built on FrameworX to provide powerful edge processing and analytics and/or be a flexible secure gateway to your cloud architecture.

What do I have to buy to get MQTT Broker and MQTT Client with SparkplugB?

All MQTT functionality is included with all of our FrameworX products. We support the open MQTT standard and also work with leading commercial MQTT Brokers to scale your applications to 1000s or 10,000s of connections. Call to learn more +1 (855) 828-7638

Do you run on Linux?

Yes, we run on Linux as well as most flavors of Windows.

What does Complete mean in terms of included functionality?

Complete means we include all of the core functionality you would expect so you don’t have to buy a bunch of “modules”. We have a built-in SQL database, OPC UA, MQTT, 40+ plc drivers, and much more.

What PLCs do you interface to?

We have many built-in communication drivers that support PLCs and industry standard protocols. This includes Rockwell, Siemens, Omron and many more, as well as, full support for OPC, OPC UA/DA, and MQTT. We also have an open toolkit for development of custom drivers.

Do you have unlimited clients, unlimited I/O points and unlimited developers licensing?

Yes, and unlimited means unlimited. (We also have pricing options for small I/O counts, such as an OEM might want.) Our flexible licensing options make us affordable for a wide variety of industrial applications.

Do you support SQL Databases?

FactoryStudio includes a full featured SQL database. It also provides seamless integration with any database including Microsoft SQL Server, Oracle, MySQL, Postgres, Microsoft Azure SQL and NoSQL data sources including OSISoft’s PI and Rockwell. There are no limits to connectivity!

What programming or scripting languages do you support?

We support C# (C Sharp), VB.NET, Python and JavaScript.

When you say .NET to the core and IntelliSense what do you mean?

All project elements: tags, datasets, alarms, and status of communications are available via Intellisense. They are all native .NET objects, no temporary tags or function calls required. Move tags to .NET objects and external data-tables with a single commend.

What functionality do you have around real-time Alarms and Events?
  • The Alarm Module was created with multithreading and exception control, for performance and reliability.
  • One-Click configuration enables Audit Trail on operator actions.
  • Project scripts can subscribe to alarm events to implement custom actions such as notification or calculations methods.
Do you support redundancy and high availability?

Yes, we have reliable and easily configurable redundancy for seamless failover. Realtime tags, devices, alarms, historical data, scripts, clients, and all modules were designed to meet redundancy and hot-swapping requirements.

Can I embed my custom analytics into FrameworX?

Yes, FrameworX is a fully open and extensible application platform. All user displays, real-time calculations, storage and analytics integrations are open and customizable. We have both developed analytics and partnered with many vertical solution providers to embed their custom data analysis, predictive analytics, and Artificial Intelligence applications into your solutions.
