IIoT Edge Gateway

Connect, Collect, View & Analyze - Powerful, Scalable, Affordable

Build a Secure reliable application at Networks Edge

Tatsoft’s Edge and IIoT-Gateway were created from ground-up with secure technologies that fully embrace the IIoT and edge of your network computing. Our open and layered platform includes OPC UA and  MQTT with SparkplugB support, we also include a full range of device connectivity. You can run with or without HMI, and our powerful platform enables real-time analytics and secure data acquisition at the edge of your network.  Our Gateway functionality can securely connect to the Cloud or your Enterprise Network

Our Benefits

Complete

Everything you need in one install, built-in real-time drivers, SQL, alarms and alerts, MQTT and OPC UA.

Affordable Edge Version

Our IIoT Edge and Gateway version is sized to your application, includes drivers, MQTT, audit trail and more.

Security & Redundancy

Mission-critical security at the core level, collect real-time data, integrate to enterprise systems.

Flexible Gateway

Supports data acquisition & secure supervisory control through multiple layers of security. Smart data gateway.

Panel HMI at the Edge

Our Edge is built from our FrameworX platform so you can create HMIs on Edge devices.

Integrate to Any Cloud

Microsoft Azure, AWS or any cloud platform, we are Open and Secure.

Connected Data Hub

Edge computing, store/forward to SQL, Data Historian or IIoT Cloud.

You Choose the Edge Device

Edge and Gateway run on Windows 10 IoT as well as Linux, embedded systems and Raspberry Pi.

Scripts to Enable Analytics

Powerful script engine at the edge or in the Cloud, C#, VB.NET, Python. Script on Production Event.

“We envision FactoryStudio long-term as being the Data Hub in most enterprises. So in industry 4.0 applications, we envision a unified namespace and all hardware and software, and all users, all consumers of data are both… they’re both consumers and publishers of data into that name space. And we see FactoryStudio is that name space in the middle. For example, using both C# and VB.NET scripting, and being able to toggle back and forth between the two. No one’s ever done that, right?”

- Intellic Integration

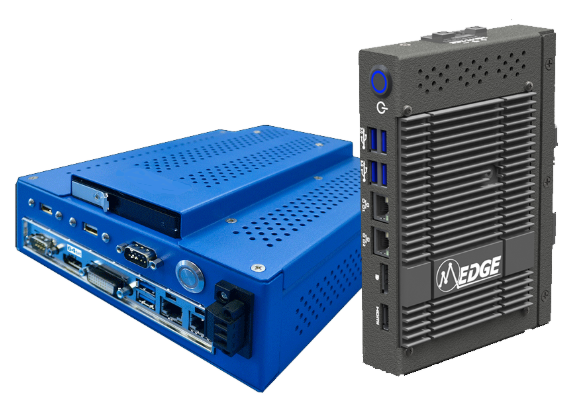

Edge And Gateway on Any Device

FrameworX Edge and IIoT Gateway are open and can run on many hardware platforms to fit your application.

  • Any Windows, Linux, and Raspberry PI
  • Run on Panel PCs with HMI and Edge
  • Customized for most OEM devices

Powered by FrameworX

FrameworX Edge and IIoT Gateway are powered by FrameworX, which means all of the functionality and built-in connectivity and capability:

  • 40+ PLC drivers including Modbus, Rockwell and Siemens
  • Device Driver Toolkit Create your own or we can assist
  • MQTT Client / Broker. OPC UA Client/Server included
  • Store/Forward, embedded SQL, Scripting in C# or Python
  • Alarms, Alerts, Audit

Data Acquisition & Analytics
at the Edge

Edge and IIoT Gateway runs any of the 40+ built-in protocol drivers. Mathematical expressions in real-time, supporting scaling, conditional statements, event triggers, conditioning data and the creation of new calculated Tags.

  • Scripting at the Edge in C#, VB.NET or Python
  • Secure Store and Forward of locally collected Data
  • Event Triggers and Conditioning of Data to new Calculated Tags

HMI at the Edge

Run HMI at the Edge and you get all the functionality of the HMI plus Edge , great for HMI Panels, Machine Builder, OEM systems, data acquisition and visualization at the edge of the network.

  • Full Flexible HMI at the Edge on your Panel Device
  • Can be customized for OEMs
  • Built-in Connectivity, ready for IIoT and Industry 4.0

Special Edge & IIoT Gateway Pricing

FrameworX Edge and IIoT Gateway are priced as an affordable, simple version to scale to the application.

  • I/O count editions
  • Gateway editions
  • Call for Pricing

FrameworX for Edge Gateway

Alarm and Notification

Multi-threaded alarming, log to SQL, scripts subscribe to events.

Built-In Drivers

Major PLC, OPC UA, MQTT drivers included.

MQTT Broker (Server) Included

FrameworX includes an MQTT Broker and MQTT Client with Sparkplug B.

Built-In SQL

Embedded SQL engine included or integrate to any SQL.

Intrinsically Secure

Implemented at the core of the platform, stable and secure.

Data Logging

Log data at the edge for edge analytics or store and forward.

Integrate to any Historian

Seamlessly integrate to any process historian including OSISoft PI, Canary Labs, GE, Wonderware and more.

Audit Trail Anything

Log events, you choose events securely to logged to encrypted SQL.

Smart Symbols

Tag, asset, template based, reusable components.

Connected Data Hub

Edge computing, store/forward to SQL, Data Historian or IIoT Cloud.

Scalable Edge Pricing

Rightsized to your requirements. Buy only what you need.

Redundancy

Server, device communications easily configured for redundancy.

Robust and Fast

Scripting

Code behind and expressions using VB.NET, C#, HTML5/ Javascript and Python.

Dashboard Builder

Build dashboards and connect to data as part of your HMI.

FAQ

What is the difference between Edge Gateway?

Edge and Gateway are built on the Secure FrameworX platform and include all the tools you need : plc drivers, OPC UA, MQTT, store and forward, scripting, mathematical expressions, multi-gateway, and more packaged as a subset to be more affordable.

What does Tatsoft have for IIoT?

The FrameworX Platform is Open and Universal and design to fit in to many IIoT architectures. We include MQTT Broker and Client functionality and SparkplugB in all our products, some of this functionality is new for 9.1. We have our Edge Gateway products built on FrameworX to provide powerful edge processing and analytics and/or be a flexible secure gateway to your cloud architecture.

What do I have to buy to get MQTT Broker and MQTT Client with SparkplugB?

All MQTT functionality is included with all of our FrameworX products. We support the open MQTT standard and also work with leading commercial MQTT Brokers to scale your applications to 1000s or 10,000s of connections. Call to learn more +1 (855) 828-7638

Do you run on Linux?

Yes, we run on Linux as well as most flavors of Windows.

What does Complete mean in terms of included functionality?
Complete means we include all of the core functionality you would expect so you don’t have to buy a bunch of “modules”. We have a built-in SQL database, OPC UA, MQTT, 40+ plc drivers, and much more.
What PLCs do you interface to?
We have many built-in communication drivers that support PLCs and industry standard protocols. This includes Rockwell, Siemens, Omron and many more, as well as, full support for OPC, OPC UA/DA, and MQTT. We also have an open toolkit for development of custom drivers.
Do you have unlimited clients, unlimited I/O points and unlimited developers licensing?

Yes, and unlimited means unlimited. (We also have pricing options for small I/O counts, such as an OEM might want.) Our flexible licensing options make us affordable for a wide variety of industrial applications.

Do you support SQL Databases?
FactoryStudio includes a full featured SQL database. It also provides seamless integration with any database including Microsoft SQL Server, Oracle, MySQL, Postgres, Microsoft Azure SQL and NoSQL data sources including OSISoft’s PI and Rockwell. There are no limits to connectivity!
What programming or scripting languages do you support?

We support C# (C Sharp), VB.NET, Python and JavaScript.

When you say .NET to the core and IntelliSense what do you mean?

All project elements: tags, datasets, alarms, and status of communications are available via Intellisense. They are all native .NET objects, no temporary tags or function calls required. Move tags to .NET objects and external data-tables with a single commend.

What functionality do you have around real-time Alarms and Events?
  • The Alarm Module was created with multithreading and exception control, for performance and reliability.
  • One-Click configuration enables Audit Trail on operator actions.
  • Project scripts can subscribe to alarm events to implement custom actions such as notification or calculations methods.
Do you support redundancy and high availability?

Yes, we have reliable and easily configurable redundancy for seamless failover. Realtime tags, devices, alarms, historical data, scripts, clients, and all modules were designed to meet redundancy and hot-swapping requirements.

Can I embed my custom analytics into FactoryStudio?

Yes, FactoryStudio is a fully open and extensible application platform. All user displays, real-time calculations, storage and analytics integrations are open and customizable. We have both developed analytics and partnered with many vertical solution providers to embed their custom data analysis, predictive analytics, and Artificial Intelligence applications into FactoryStudio projects.
