Cisco IR1101 Router

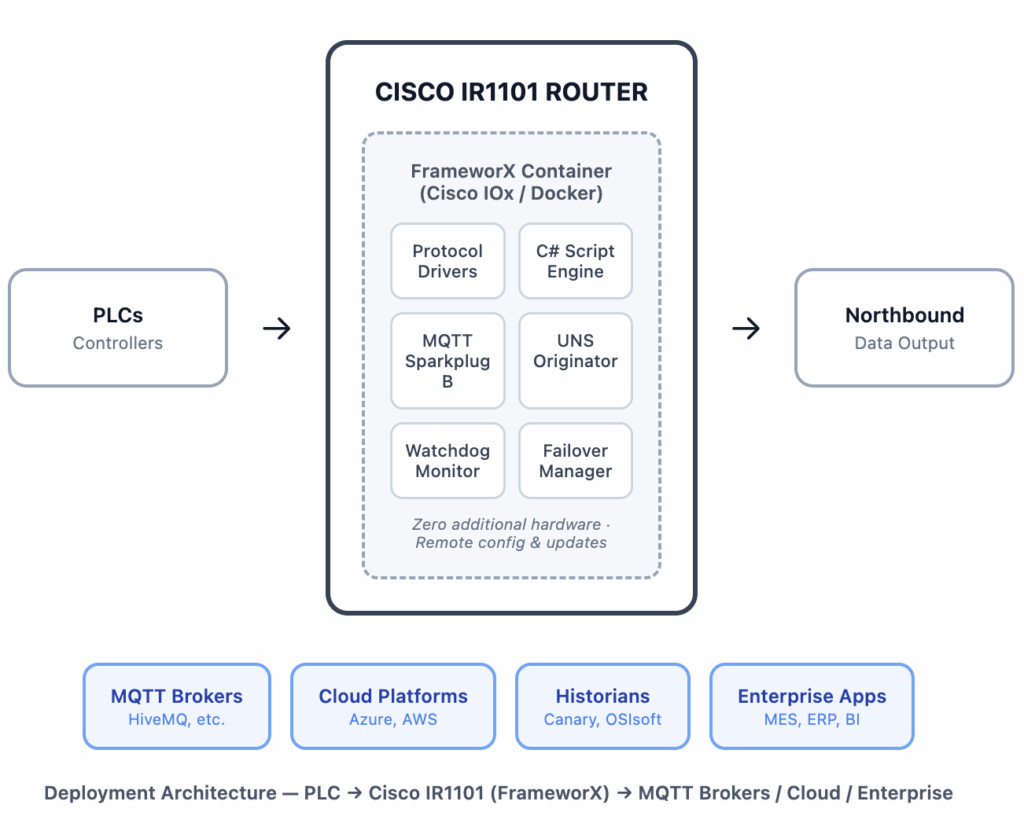

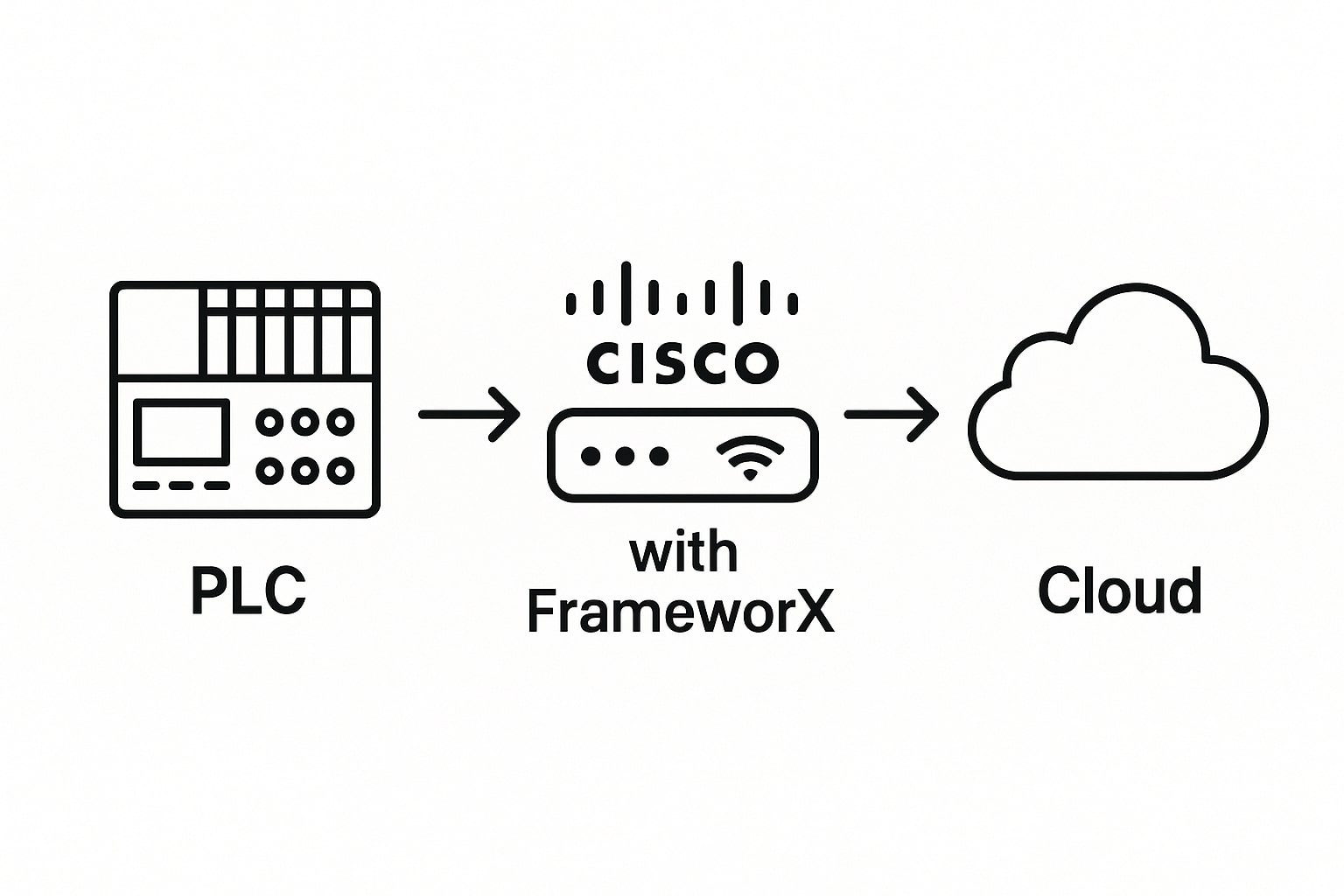

FrameworX runs inside Cisco Industrial Routers — not just connected, fully embedded.

Native Integration

Validated Platform

  • Cisco IR1101 Industrial Router (validated, production-proven)
  • Other Cisco IOx-enabled models require validation

Proven at Scale

  • 300+ production sites in Oil & Gas
  • Onshore and offshore deployments
  • Delivered on schedule, fully validated

Technical Capabilities

Data Acquisition

  • Rockwell ControlLogix, Rockwell MicroLogix, Allen-Bradley DF1
  • 100+ additional protocols

Data Publishing

  • MQTT Sparkplug B Publisher
  • Local UNS (Unified Namespace) Originator
  • Direct cloud connectivity
  • Multiple northbound connection paths

Edge Processing

  • C# scripting for data normalization
  • Custom watchdog implementation
  • Managed failover for northbound connections
  • Alternative connection path management

Why This Matters

Reduce Infrastructure Costs

Eliminate separate edge computers and gateways.

Simplify Architecture

One device for routing and automation.

Leverage IT/OT Convergence

Use existing Cisco infrastructure with unified security and management.

Enable Modern Industrial IoT

Native MQTT Sparkplug B with Local UNS for Industry 4.0.

Solution Blueprints Available

  • Oil & Gas Production Monitoring
  • Remote Site Data Collection
  • Multi-Protocol Edge Gateway
  • Failover and Redundancy Configurations

Each blueprint includes reference architectures, step-by-step guides, scripts, and troubleshooting.

Complete Technical Documentation

Full Deployment Guide Available — installation, configuration templates, script guidelines, troubleshooting.

Access Documentation
Contact Engineering Team
